Worldwide Electric

Stainless Steel motors

Stainless Steel motors

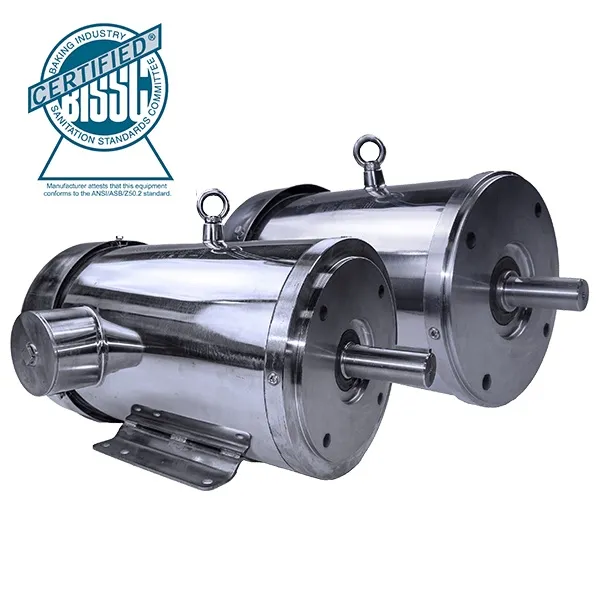

WorldWide Electric’s Premium Efficient Stainless Steel motors feature an IP69K rating for complete protection from water, dust, and oil. Additional features include horsepower ratings from 1/3 to 20 HP, a round welded junction box with epoxy potted leads, and a 304 stainless steel frame, end bracket, junction box, and hardware. These continuous duty, premium efficient motors are ideal for use in food and chemical processing plants, pharmaceutical applications, and other environments where corrosion-resistant, watertight motors are required.

Features

• 1/3-20 HP, 3600 and 1800 RPM
• 1/2-5 HP, 1200 RPM
• 208-230/460 volt, 60 Hz
• Totally Enclosed Fan Cooled (TEFC) Enclosure
• IP69K Protection
• 1.15 SF
• Class F Insulation with Class B Temperature Rise
• C-Face with Feet and Round Body (Footless)
• Premium Efficiency (EISA Compliant)
• NEMA Design B
• Continuous Duty
• 304 Stainless Steel Frame, End Bracket, Junction Box, and Hardware
• Stainless Steel Shaft and Key
• F1 Junction Box Location
• Lip Seal on DE and ODE
• Round Welded Junction Box with Epoxy Potted Leads
• Double Sealed Bearings Pre-Packed with Mobil Polyrex EM Grease
• Inverter Duty – 10:1 Constant Torque (CT) / 20:1 Variable Torque (VT)
• CSA Class 1 Division 2 Groups A, B, C, D – Temperature Code T2BAmbient -20°C to +40°C, Altitude up to 3300 Feet Above Sea Level (FASL)
• Bi-directional Rotation
• BISSC Certified
• In Accordance with NEMA, CSA, UL, and CE
• 3 Year Warranty
