WinSystems Inc.

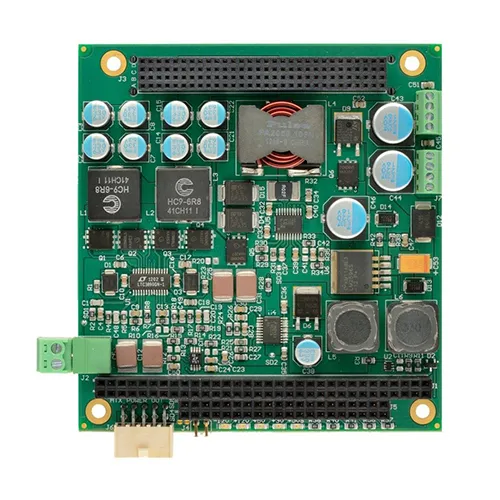

PPM-DC-ATX-P

The PPM-DC-ATX-P is a PC/104-Plus module that produces five regulated DC voltages from a common DC input. It features a very wide voltage input range from 10 to 50 volts. This allows the unit to operate with 12, 24, or 48 volt battery or distributed DC power systems.

Features

• Wide input range: 10V to 50 VDC

• Voltage output: +5V @ 10A, +3.3V @ 10A, +12V @ 3A, -12V @ 800 mA, and +5VSB @ 2A

• PWR_OK, PS_ON#, and +5VSB supported for power management and sleep modes

• -40 to +85°C operation

• No fan or heat sink required

• No minimum load required for regulation

• Outputs with short circuit, overload and overvoltage protection

• Screw terminals for accessory power connection

• High efficiency design

• Fast transient response
