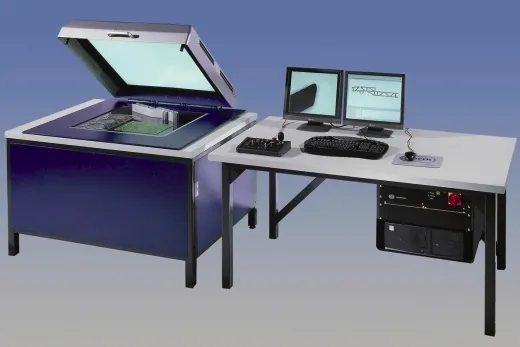

Werth FlatScope

The scanner as measuring machine - most accurate 2D scanner in the world today for measurement of two dimensional workpieces

Design : High quality matrix scanner with telecentric imaging optics. Fully enclosed construction for use in the shopfloor environment.

Available Measuring Sensor : Werth image processing (IP) video sensor

Measuring Range : X=400-650mm; Y=200-600mm

Maximum permissible length measurement error : down to 2.5 µm

Applications : Replaces conventional profile projectors for fast, precise, and reliable series control of flat samples in the shopfloor environment. Measurement of profiles (i.e., rubber goods, plastic, and aluminum), thin foils, printed circuit boards (PCBs), laser-cut and fine stamped parts, etc.
