Vivace Process Instruments

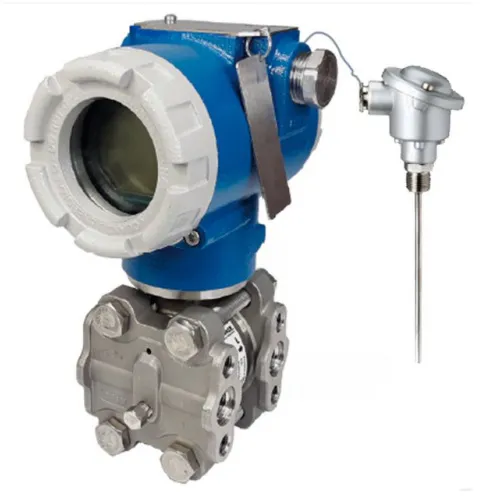

Profibus PA MutivariableTransmitter VMV10-P

VMV10-P is a fully digital profibus PA multi variable transmitter - Pressure and Temperature Transmitter designed for differential, gauge and absolute pressure measurements, plus temperature measurement with RTD, TC, Ohm and mV sensors. It has a capacitive pressure sensor.

The multivariable flow transmitter is powered by a 9 to 32V dc voltage and uses the Profibus PA communication protocol in accordance with IEC61158-2 for configuration, calibration, monitoring and diagnostics.

VMV10-P works with the concept of functional blocks, such as Analog Input and Totalizer. Profibus PA configurator, Android platform or tools based on EDDL or FDT/DTM can easily configure the transmitter. In addition, it is possible to configure the VMV10-P via local adjustment using a magnetic key.
