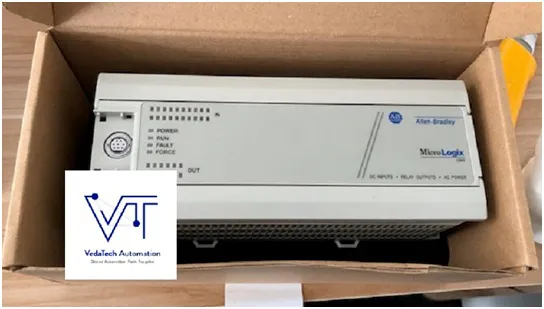

Allen Bradley 1761- L32BWA

Allen Bradley 1761- L32BWA

Description: Micrologix 1000 120/240Vac 32I/O dc i/p

Overview:

MicroLogix 1000 offers high speed, powerful instructions and flexible communications to applications that require compact, cost-effective solutions. The controller is offered in 10-point, 16-point or 32-point digital I/O versions. Analog versions are available with 20 digital I/O points, with 4 analogue inputs (two voltage and two current) and 1 analogue output (configurable for either voltage or current).

Features of Allen Bradley 1761- L32BWA

1. Number of I/O: 32
2. Digital Inputs: 20 inputs 24V DC sink/source;
3. Analog Inputs: 0
4. Digital Outputs: 12 contact outputs.
5. Isolation: 1500V AC
6. Memory Type: EEPROM
7. Memory Size: 1K words composed of approximately 737 instruction words, 437 data-table words.
8. Communication Port: RS-232-C (Can be configured for communication through 1761-NET-AIC in a DH-485 network).
