Valvole Hofmann by Bonino Engineering S.r.l

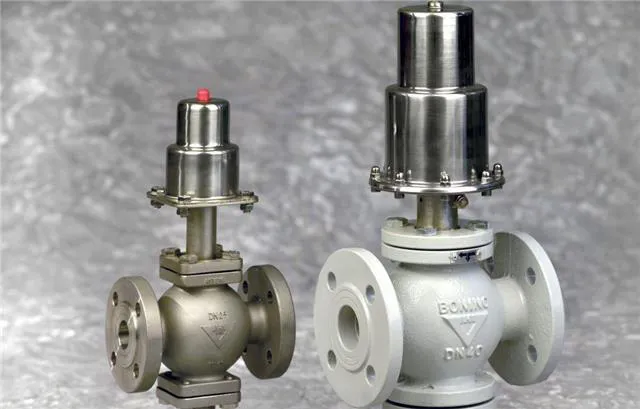

03FA-3

• Three-way on-off flow valve, available with EN-GJS-400-18-LT spheroidal cast iron body (GGG40.3) or with AISI316 stainless steel body (1.4408), and AISI304 stainless steel actuator (1.4301 ).

• It is available in single-acting, normally closed, normally open or double-acting on-off operations ; the standard valve can operate up to 195 ° C (Tmax ATEX = 180 ° C).

Characteristics:

• EN-GJS-400-18-LT spheroidal cast iron body (GGG40.3) with flanged connections according to UNI EN 1092-2 or available with AISI316 stainless steel body (1.4408) with flanged connections according to UNI EN 1092-1

• Plastic seal gasket for excellent resistance to high temperature

• Packing box in PTFE and FPM suitable for both high and low temperatures, placed in a self-adjusting stable position to guarantee minimum stress for constant operation over time

• Shaft driven for constant axial movement to guarantee always efficient operation

• Servo control in AISI 304 stainless steel with total elimination of any possible breakage of the same and suitable for use in particularly harsh outdoor environments
