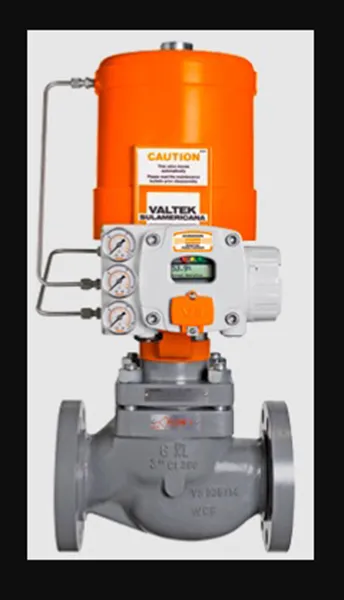

Globe Type Valve AG XL Chronos
AG XL -Chronos offers a complete integrated set of globe-type control valve and digital positioner HART® communication protocol with high technical characteristics. AG XL -Chronos is the best option on the market when you need a versatile, simple, robust valve with high performance and fast delivery.
Characteristics
Type
Globe - Single Seat
Nominal sizes
½ - ¾ - 1 - 1½ - 2 - 3 - 4 (inches)
Body materials
Carbon Steel WCC, Stainless Steel CF8M
End connections
Intergral flanges, Socketweld, NPT
Face-to-face dimension
ANSI/ISA 75.08.01
Bonnet
Standard
Shutoff
ANSI Class IV with metal seat, ANSI Class with soft seat
Flow characteristics
Linear, Equal percentage, Quick open
Operating Temperature
-29 a 232 ºC (-29 a 450 ºF)
Actuator
Double acting cylinder with positive spring for failsafe action
Positioner
Digital, HART® protocol, Chronos model
Maximum air supply pressure
150 psi (10,3 bar)
