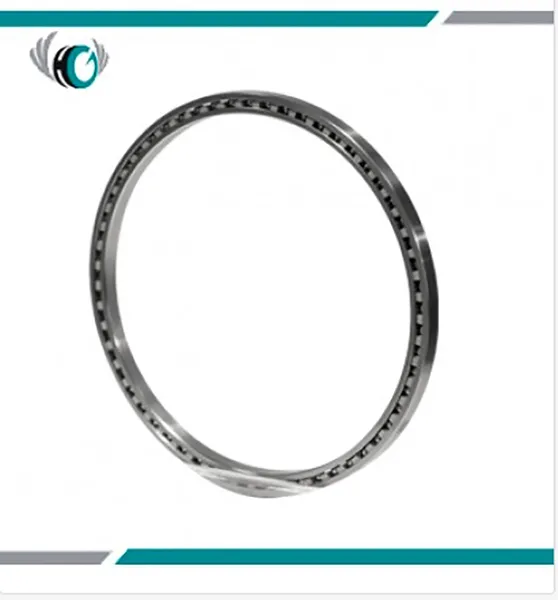

THIN SECTION RADIAL CONTACT BALL BEARINGS HKAA SERIES (3/16" X 3/16")
C-TYPE--Thin section bearingsSeals: NOSeries:HKAA,HKA, HKB, HKC, HKD, HKF, HKGinner: 1.000inch(25.4mm)-20inch(508mm)outer: 1.375inch(34.925mm)- 22inch(558.8mm)Weight:0.012kg-7.53kg
The Thin Section Radial Contact Ball Bearings (C type, open) can carry a radical load with high quality and precision, reliable stability, and a long lifespan. We offer HKAA series, HKA series, HKB series, HKC series, HKD series, HKFC series, and HKG series.
Without the holes for ball installation, the Thin Section Radial Contact Ball Bearings (C type) can withstand the axial (thrust) load in either direction as well as the radial load. However, its capacity to carry axial load depends on the size of the installed bearing clearance.
If you need Thin Section Radial Contact Ball Bearings (C type, open)
|
HKAA series
|
Weight Kg
|
|
Type
|
(inch/mm) Dimension
|
N Basic Cap.
|
|
|
|
d
|
D
|
L1
|
L2
|
Cor
|
Cr
|
|
|
HKAA010C
|
1.000
25.4
|
1.375
34.925
|
1.142
29.0
|
1.236
31.4
|
1290
|
840
|
0.012
|
|
HKAA015C
|
1.500
38.1
|
1.875
47.625
|
1.642
41.7
|
1.736
44.1
|
1780
|
1000
|
0.018
|
