Valves & Valve Accessories - Cast Iron Mud Valves

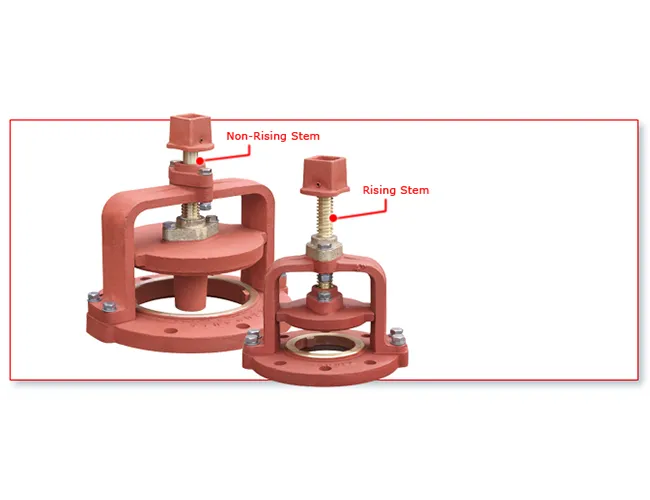

TRUMBULL MUD VALVES are designed primarily for use in settling tanks of water and wastewater treatment plants.They are for low pressure applications only; consult Trumbull for special requirements. Their intended use is to drain tanks for maintenance or cleaning.

Mud valves are furnished with a 2″ square operating nut; however, they can be supplied with optional extension stem or handwheel.

This valve series uses bronze seats in the body and gate (also available with resilient seat). The cast iron body assembly features manganese bronze stems and guides for use in submerged installations. The fasteners are furnished in stainless steel to prevent corrosion from years of submerged service.

Valve position indicators are recommended with mud valves, to provide a visual indication of the valve’s position. See position indicator installed in floor box or position indicator installed on a wall bracket.
