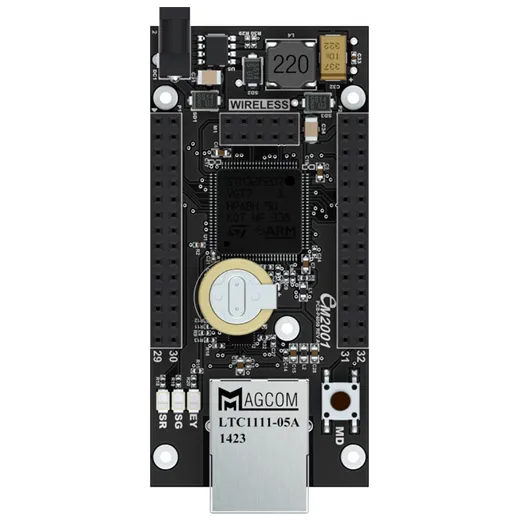

EM2001 Programmable IoT Board

EM2001 Programmable IoT Board is a full-featured Tibbo BASIC/C-programmable IoT Board with Ethernet, as well as optional Wi-Fi* and GPRS** connectivity. The EM2001 has four UARTs. The board offers substantial speed and functionality improvements over its predecessor - the original EM1001 device.

* Requires the GA1000 Wi-Fi add-on, which can be connected externally or piggybacked on top of the EM2001.

** Requires a standard GPRS modem (i.e., Simcom's SIM900) to be connected to a UART of the EM2001.

Key Features:


• High-performance ARM CPU
• 10/100 Base-T Ethernet port with onboard magnetics and RJ45 jack
• Optional Wi-Fi connectivity (with the GA1000 add-on)
• Optional GPRS connectivity (requires an external modem)
• 4 UARTs support serial, Wiegand, and clock/data streams
• 56 general-purpose I/O lines
• Can drive externally connected buzzer
• 4-channel ADC
• 4 synchronous serial ports with SPI and I2C modes
• Supports externally connected TFT LCD
• Supports external matrix and binary output keypads

Specifications:


• 32-bit architecture
• Powered by Tibbo OS (TiOS)
• 10/100BaseT auto-MDIX Ethernet port with RJ45/magnetics
• Optional Wi-Fi interface (requires the GA1000 add-on module)
• Can control a GPRS modem* (such as the SIM900)
• Four high-speed serial ports (CMOS)
• Baud rates of up to 460,800bps
• None**/even/odd/mark/space parity modes
• 7** or 8 bits/character
• Full-duplex mode with RTS/CTS and XON/XOFF flow control
• Half-duplex mode with direction control
• Encoding and decoding of Wiegand and clock/data streams
