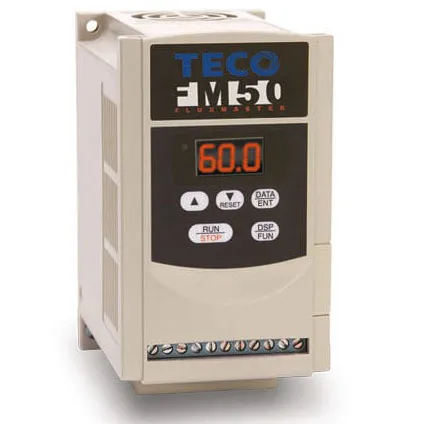

MICRO AC DRIVE
Features
.25 to 1HP, 115V, 50/60Hz Single Phase Input
.25 to 3HP, 230V, 50/60Hz Single Phase Input
2 and 3HP, 230V, 50/60Hz Three Phase Input
1 to 3HP, 460V, 50/60Hz Three Phase Input
0 to 200Hz Output Frequency Range
3 Digit LED Built-In Keypad
Constant Torque Rated
Pulse Width Modulation (PWM) Utilizing IGBT Technology
Selectable Reference Input
4 Digital Inputs 2 Are Multifunction
1 Analog Output (0-10V)
1 Relay Class Digital Output
3 V/Hz Control Patterns
0 to 999 Seconds Programmable Acceleration and Deceleration Time
Built-In Brake Transistor on Most Models
200% Instantaneous Over Current Capabilities
150% Over Current for One Minute
Motor Overload Protection
Fault History
Torque Boost Function
UL, cUL and CE Approved
