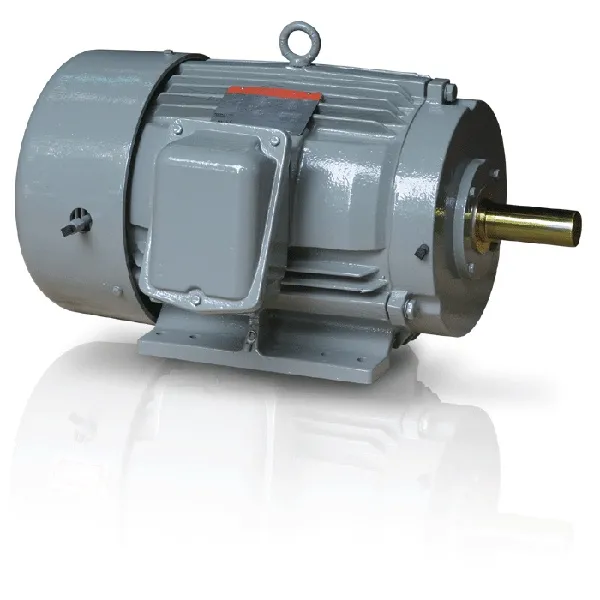

SUPER MAX-841 SEVERE DUTY

SUPER MAX-841 SEVERE DUTY

• Output : 1HP~500HP
• Poles : 2, 4 , 6 & 8P
• Frame size : 140T~N5808
• Frequency : 60 Hz

Supermax-841 Premium Efficiency Series ( NEW )

• Enclosure : TEFC
• Efficiency : NEMA Premium Efficiency
• Output : 1HP~500HP
• Poles : 2, 4 , 6 & 8P
• Frame size : 140T~N5808
• Power : 3-Phase
• Frequency : 60 Hz
• Standard Voltage : 460V ,575V (Single Voltage)
• Service Factor : 1.15
• Electrical Design : B
• Insulation Class : F with B Rise @ 1.0S.F
