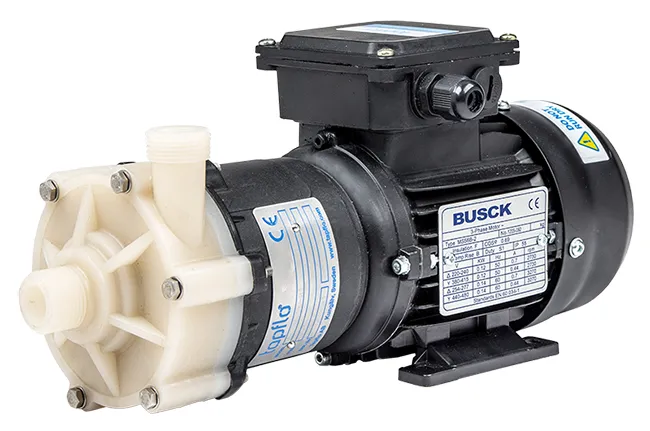

CTM 20-7 is the smallest in the range of CTM pumps, has 0.12 kW motor, maximum capacity 4.5 m3/h and maximum head 7.5 m. Available in PP and PVDF.
Dimensions
mm/inch
Height A
70 / 2.76
Length B
248.5 / 9.78
Height C
56 / 2.20
Depth D
112 / 4.41
Materials
Pump casing and isolation shell (rear casing)
PP-GF (30%) or PVDF
Impeller
PP or PVDF
Lantern (not wetted)
PP-GF (30%)
Static bushings
Ceramic (standard) or SiC
Rotating bushings
PTFE-graphite (standard) or SiC
O-rings
FKM, EPDM
Magnets
NdFeB
General characteristics
Temperature range
PP pumps: 0C .... +70C
PVDF pumps: 0C .... +80C
System pressure rating
PP pumps: PN4 at 20C, PN2 at 70C
PVDF pumps: PN4 at 20C, PN2 at 80C
Viscosity
200 cSt max
Solids
2% max concentration by weight
Hardness 800 Vk / size 0,1 mm
Motor
IEC standard, 3-phase
0.12 kW/2900 rpm, IP 55, frame IEC B3/B14
