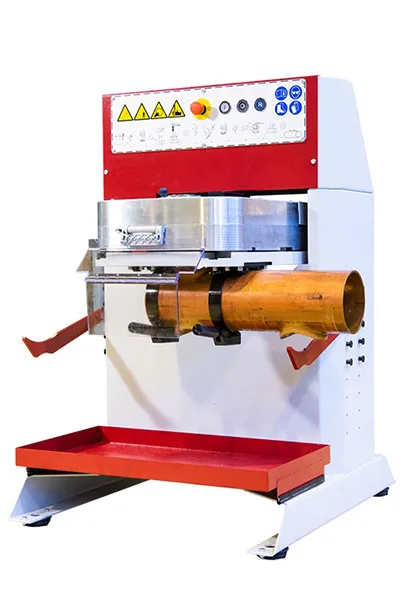

T-115 Cu Collaring Machine
T-115 Cu Collaring Machine
Collar sizes: 18–114,3 mm | NS 5/8” – 4”
Run tube sizes: 22–267 mm | NS 3/4” – 10”
Pipe material: Copper
Machine type: Industrial machines
Process: Collaring
T-115 Cu Collaring Machine
The transportable T-115 Cu Collaring Machine fits perfectly e.g. for the needs of heat exchanger manufacturers. The machine produces extruded outlets for branch connections in copper tubes within range 22–267 mm (⅞’’ – 10’’).
The T-115 Cu is easy to operate, as the operation panel provides simple step-by-step instructions and the delivery package includes a convenient Tool Table for easier machine usage and tool service. The machine is 800 mm (32’’) wide and designed for easy moving with a manual or motorized forklift. It is an ideal solution for both factory and on-site use.
The system consists of a pilot hole cutter for making a round pilot hole and collaring tooling for diameter range 18–108 mm (¾’’ – 4⅛). Each collaring tool (collaring head) is adjustable within a given range. Adjustment is made according to branch tube O.D. The machine drills the pilot hole and forms a collar on the tube. The branch tube is connected to the run tube by a brazed joint.
Key Features
• Adjustable tools for any branch pipe size• Precise collar quality• Easy step-by-step instructions• For both factory and on-site use• Only 800 mm wide (32’’)• Easy to move by manual- or motorized forklift
