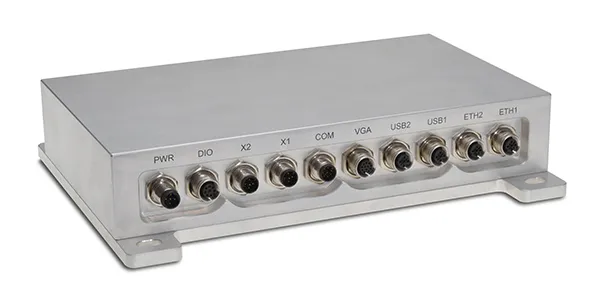

Ultra rugged fanless embedded Box PC with Intel-Atom processor and M12 plug.

24/7 continuous operation · Maintenance-free · IP67 · Fanless · Ultra rugged

With the fanless RPC (rugged PC) Compact 71 Series, Syslogic has once again raised the bar for robust embedded box PCs. The housing on the rugged PC is made from hard-anodized aluminum. It is resistant to dust, water and chemicals and is thus assigned to protection class IP67. Under the housing, the Compact 71 rugged PC boasts a scalable Queensbay platform from Intel. In addition, all Compact 71 rugged PCs are equipped with a real-time clock (RTC) with Gold Cap for maintenance-free functionality. Another feature of the robust embedded computers is the M12 plug, which is able to withstand even strong vibrations. Rugged embedded box computers PCs are thus ideally suited for use in railway applications or in vehicles and wind energy plants.

Technical data

System

• Low power, high performance Intel Atom processor
• Up to 2 GB DRAM on board soldered
• Ethernet 10/100/1000 MBit
• 4 x USB
• Socket for SD Card
• SATA Interface
• 2x RS232
• RS485 (optional)
• 2x CAN SJA1000 isolated (optional)
• VGA
• FPD Link II
• Socket for SRAM, DiskOnChip, EEPROM
• 10...30VDC Power Supply (optional isolated)

Features

• Rotary Hex-Switch for user defined configuration
• RTC, Watchdog, temperature monitoring
• ESD protected

Operating System

• BSP for Windows embedded Standard 7
• BSP for Windows embedded Standard 2009
• BSP for Windows embedded CE 6 (on request)
• BSP for Linux (on request)
