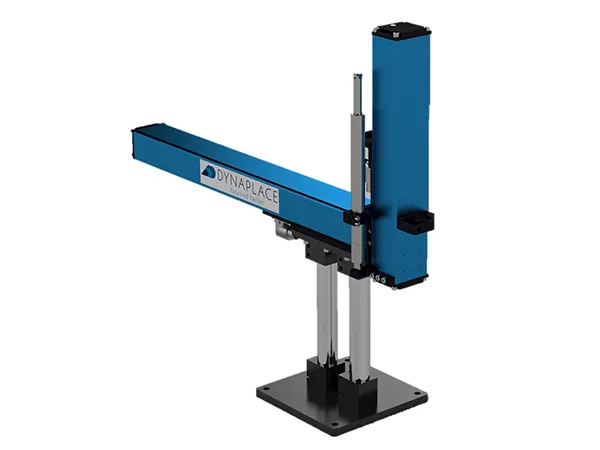

Dynamic Twin-Axis Cartesian Robot

Dynamic Twin-Axis Cartesian Robot

Finally, an out of the box pick and place system complete with drives, controls, and robot all in one complete, programmed package ready to install.

• Compact and extremely narrow design. The thin profile pick and place system is excellent for many applications; 1) sorting 2) placing 3) picking 4) capping
• Motion in/out, up / down and 360-degree rotation
• Precise position repeatability due to sturdy ridged extruded aluminum design
• Built in incremental encoder provides constant and instantaneous feedback
• Fastest production rates due to highest acceleration and deacceleration speeds due to the linear motor drive system
• 120V AC plug in only power required
• Control, easy to program with easy to use teach mode
• Dependable, no moving parts, sealed for life bearing only piece that moves. Unlike air drives, belt drives and ball screw systems with multiple moving parts
• Designed for moving payloads where extreme accuracy and speed are required

Standard Features

• Standard End Arm Tooling Mounting
• Linear Motor Drives
• Lube-For-Life Bearings
• MagSpring Magnetic Counterweight
• Adjustable Base Height
• Available in 3 models: SM, MD, LG
• Axis options: X,  X & Z, X & Z with control

Control Package Features

• EtherCAT Communication Protocol
• 16 DC Inputs, 16 DC Outputs
• 8 Analog Outputs
• Teach Mode
• Up to 100 Recipe Storage
• Safe Torque Off (STO) Motor Drives Safety Circuit Included
• 120V Power Supply
