ROSS CONTROLS

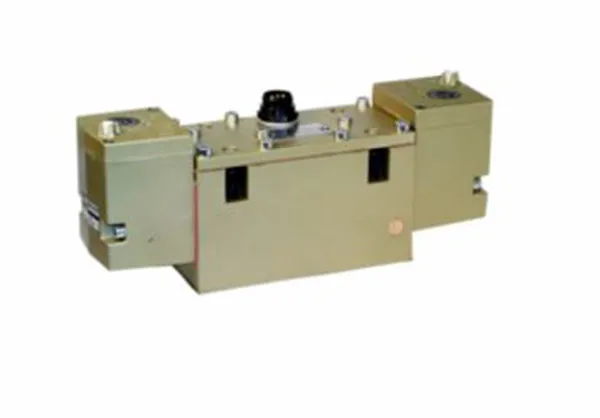

SAE, Spool & Sleeve

Features & Benefits

• Spool & Sleeve
• SAE Size 125, 250, and 500
• 5/2 or 5/3 options
• Sub-base and manifold base mounting

ROSS Controls® SAE Spool & Sleeve Valves – 80 Series

The ROSS® SAE valves 80 Series are base mounted spool and sleeve valves, designed to conform to the standards of the Society of Automotive Engineers (SAE), this makes the valves for SAE bases interchangeable.

These SAE Size 125, 250, and 500 valves are available as, 2- and 3-position, 5-ported 4-way solenoid pilot valves with either internal or external pilot supply. The spool and sleeve design means there are no seals to wear out.

• Pilot operation provides high shifting force with low power consumption
• Individual sub-base or manifold base mounting
• Operating pressure from vacuum to 150 psig (10 bar)
• Multi-pin micro and mini electrical connection options
