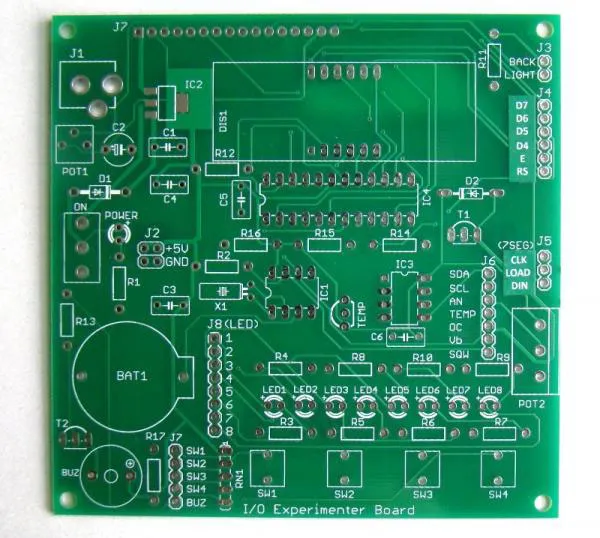

Double Layer PCB

Double Layer PCB

As Ronak Circuits Pvt. Ltd. expertise in making double layer PCBs with high quality. We at Ronak Circuits Pvt. Ltd. manufactures Double Layer PCBs with his standard panel size of 508mm * 640mm and also planning to manufacture advance size of 610mm * 1400mm. Double- layer or double-sided PCBs have a base material with a thin layer of conductive metal, like copper, applied to both sides of the board. Holes drilled through the board allow circuits on one side of the board to connect to circuits on the other.

Property of Double Sided PCB

• Thickness of 0.2 to 3.2mm (with finish copper of 3 oz)
• Line width and spacing of 6 / 6 mils (sample lots 5/5mils)
• Minimum finished hole size of 0.3mm
• Surface finish of Solder leveling / Lead free hot air leveling / Chemical Tin / Chemical Gold.
