Regada, s.r.o

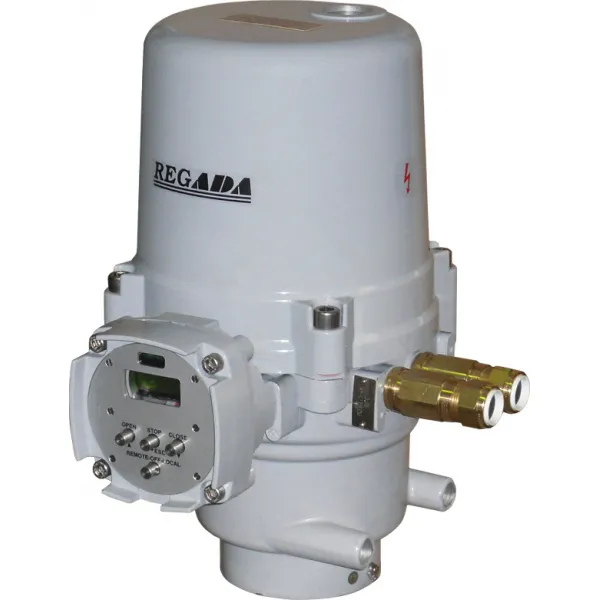

Electric part-turn actuator UPR 2PA-Ex

Type number:    347
Switching-off torque:    120 to 300    [Nm]
Operating time:    4 to 80    [s/90°]
Operating angle:    60° to 360°
Ambient temperature:    -25 (-50) to +55    [°C]
Protection enclosure:    IP 66 / IP 67 / IP 68
Operating position:    any position
Weight:    29 to 31    [kg]
Explosion protection:    II 2G Ex d IIC T5 Gb
II 2G Ex de IIC T5 Gb
II 2D Ex tb IIIC T100°C Db

Standard equipment an functions DMS3

·    Supply voltage 230 V AC
·    Terminal board connection
·    Protection of the motor against overheating
·    Switching off in limit positions from the position or torque
·    Adjustable switching-off torque  from 60% to 100%
·    Torque blocking in limit positions
·    Torque blocking during the start
·    2 freely programmable relays R1, R2 (18 functions)
·    Relay READY
·    Control by unified signal 0/4 - 20 mA, 4 - 12 mA, 12 - 20 mA, or 0/2 - 10 V (not for DMS3 in 2P version)
·    Control voltage for remote control 24 V DC
·    Impulse control
·    Timing mode / regime of operation
·    Safety function ESD (failure reaction)
·    Electronic position transmitter 4-20 mA passive (not for DMS3 in 2P version)
·    Auxiliary voltage output 24 V DC, 40 mA for supply of the control inputs
·    Output for failure messages
·    Space heater operated by control unit
·    LED position indicator
·    Communication interface RS 232
·    Programme for parameters setting by PC
·    Mechanical stop ends
·    Mechanical connection - flange ISO 5211
·    Manual control
