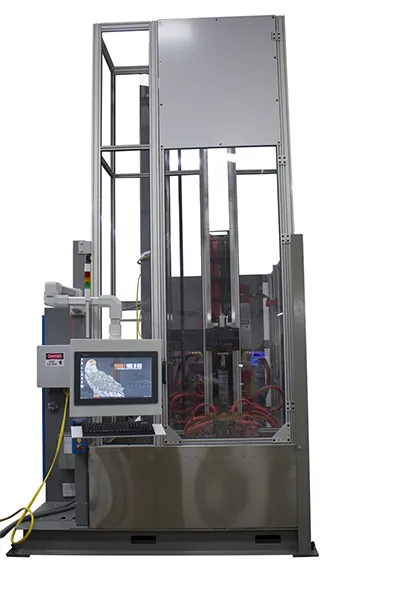

ScanMaster 120 Induction Scanner
ScanMaster 120 Induction Scanner
The ScanMaster® 120 induction scanner is designed to accommodate parts up to 120 inches in length. It includes the scanner assembly, a power supply, inductors, standard guarding with safety light curtains, ScanMaster® controls and a configurable water/quench cooling system.
ScanMaster® induction scanner components can be incorporated together or separately to meet specific needs, and can be easily adapted for use with external material handling units, such as a pick-and-place, linear transfer, clamp transfer and more.
Our user friendly control system simultaneously controls scan speeds (0-6 in. [152.4 mm] per second), rotation speeds (0-60 rpm), heat levels, heat times, quench times, quench temperature, time delays, and six additional user custom digital outputs.
FEATURES
- Single Spindle
- Built-in quench tank
- Movable Upper Center Spindle for quick and easy changeovers
- Self-contained system easily integrated into work cell
- Different power ratings and frequency ranges available for application-matched precision hardening
- User-friendly controls simplify set-up, changeover, and diagnostics
- Flexible work piece capacity
- Simple utility connection for fast, low cost installation
- Optional QAS 2000 Monitoring and Alerting System which provides process monitoring and traceability for each part processed
TECH SPECS
|
|
SCANMASTER® 120 INDUCTION SCANNER
|
|
Scan Length
|
120 in. [304 cm]
|
|
Spindles
|
Single Spindle (3-Jaw Chuck)
|
|
Rotation Speed
|
0-60 RPM
|
|
Maximum Payload
|
5000 lbs.
|
|
Single Part Diameter
|
30 in. [762 mm]
|
|
Dimensions
|
186W x 104D x 180H in.
[472W x 264D x 457H cm]
(210H in. [533 cm] Fully Raised)
|
|
Operator Interface
|
Touchscreen Controls Package
|
|
Quench Tank
|
1600 gal./400 GPM
[6056 L/1514 LPM]
|
|
Quench @ 50% Duty Cycle
|
600 kW
|
ADDITIONAL ADD-ONS
- Quick Disconnect – Quick change tooling for coil mounting
- Robotics and Material Handling Integration, i.e. integrated bowl feeders, rotary tables, step feeders, conveyors, or 6 axis robotic arm
- QAS 2000 Quality Assurance System
- Pyrometer Sensor
- Chillers
- Automatic/Semi-automatic part handling modules
- Auxilary quench tank and pump
