Diode Pumped Solid State Nd:YAG Lasers

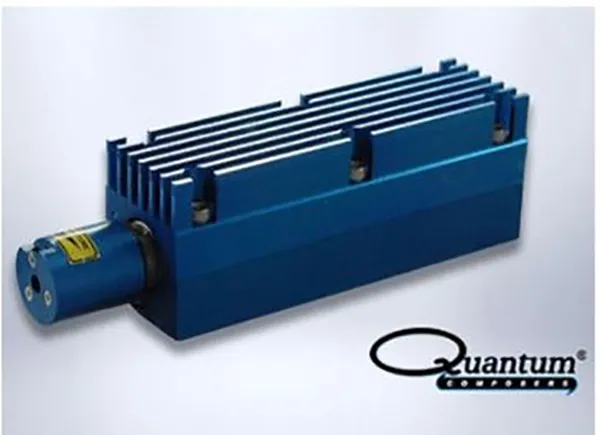

The MicroJewel Lasers are a series of rugged, pulsed laser, passive Q-switched, Nd:YAG, DPSS lasers with an ultra-compact design delivering 8mJ or 4mJ at 1064nm. Reliable, light-weight, and efficient, the MicroJewel lasers are ideal for commercial and OEM applications requiring small form factors or portable applications
The MicroJewel is just 90.5mm long, weighs only 40 grams and has a compact, inline resonator which will reduce the space and weight limits on laser systems.
Accessories and options can be added to optimize the laser to your application. (divergence vs energy).
Applications Information:
The MicroJewel lasers are perfect for application needing a small foot print. It has lower power consumption making it ideal for portable and hand-held applications. These features allow the laser to be easily integrated portable or hand-held applications: LIDAR, LIBS, ablation and mass spectroscopy applications.
Product Features: 2 Versions 8mJ and 4mJ
- Energy Max: 8mJ -or- 4mJ
- Rep Rate: 10Hz*
- Wavelength: 1064nm, 532
- Pulse Width/Duration: (ns) 6.0 ± 2.0
- Beam Divergence: (mrad) ≥ 6.0 @ 1064; ≥ 7.0 @532
- Beam Diameter: (mm) 1.25 ± 0.5
- Dimensions: 16mm diameter and 90.5mm in length
- Weight: 40 grams
- Compact, inline resonator
- Efficient, reliable diode pump
- Excellent shot to shot stability
