ProPhotonix

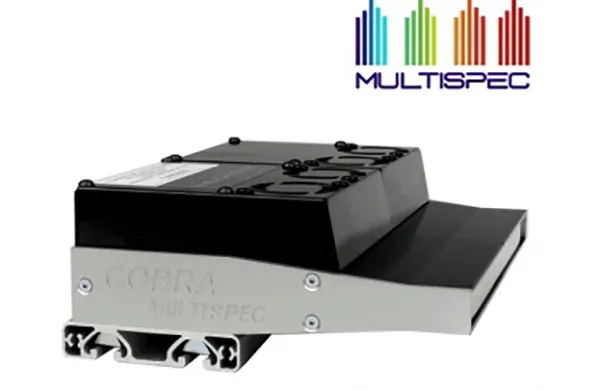

COBRA™ MultiSpec

Tunable, MultiSpectral LED Line Light with up to 12 different wavelengths

COBRA™ MultiSpec multispectral LED line light has been designed to deliver tunable multispectral light allowing you to optimize image acquisition. Offering discrete control of up to twelve different wavelengths from 365nm to 1650nm via an intuitive graphical user interface, you can maximize contrast by choosing the optimum spectral profile and providing more intensity at specific wavelengths to suit your application needs.

COBRA MultiSpec delivers multispectral tunable illumination allowing users to optimize the spectrum to maximize contrast, compensate for camera sensitivity, and deliver clearer, higher resolution images for increased accuracy and speed. Precise control of the light via its user-friendly GUI allows system designers to easily fine-tune the performance of their system. Discrete control of each wavelength allows users to select the optimum wavelength balancing and relative intensities specific to the application needs.

Key Features:

• Standard wavelength configurations, as well as custom options
• Chip-On-Board: extreme brightness and high uniformity
• Modular: available in any length up to 5 meters
• Up to four independent strobe lines
• On-board Ethernet control
• Input Power Monitoring and error detection

Key Applications:

• Multispectral Imaging
• Hyperspectral Imaging
• Print inspection
• Food Sorting, Grading and Analysis
• Chemical and Pharmaceutical Analysis
• Sorting of Recyclable Material
• Currency Inspection
