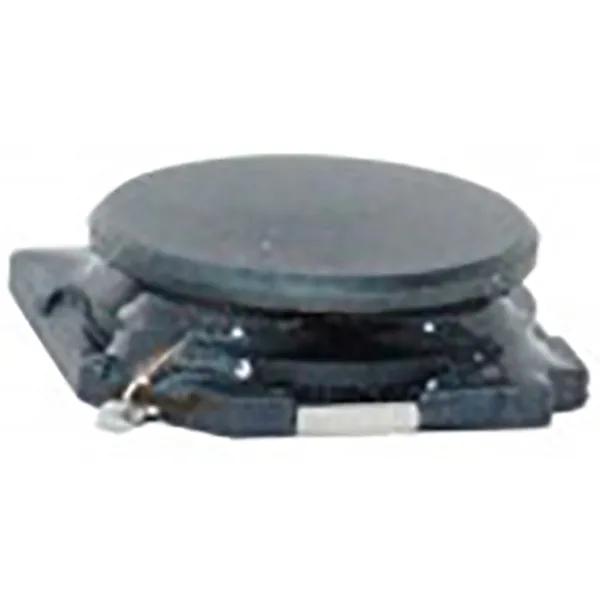

ZC1003 - Z axis Surface Mount Z AXIS RFID Transponder Coil

This SMD coil offers a very low profile solution for applications in which it’s needed a transponder vertical coil with high sensitivity in z direction and in a small surface area. It’s so a lower profile solution for those applications in which the height of the component is critical. The design combines the best electrical performance in these dimensions together with mechanical robustness.

Keyless Entry Systems is a typical application for this coil where performs high sensitivity in a very small package and with the advantage of easy SMD assembly.

This design shows also very good sensitivity performance in angle deviation from z axes.

• Standard size 10 x 10 x 3.2 mm.
• Very good electrical and mechanical performance.
• High stability in temperature (-40 ºC to +125 ºC).
• Inductivity value can be customized to achieve customer requirements.
• Designs at lower frequencies such as 20 kHz and 40 kHz show a verygood electrical performance as well.
• High sensitivity values achieved with verygood thermal and mechanical performance.

Applications:

• Automotive passive keyless entry systems.
• Automotive RTMPS with wake up functions.
• Industrial logistics and control.
• Access control.
• Tracking devices

This chart is a reference guide for the most common required values at working frequency of 125 kHz. Any other inductance value at LF or tighter tolerances can be provided. Please contact our sales department for any inquiry.
