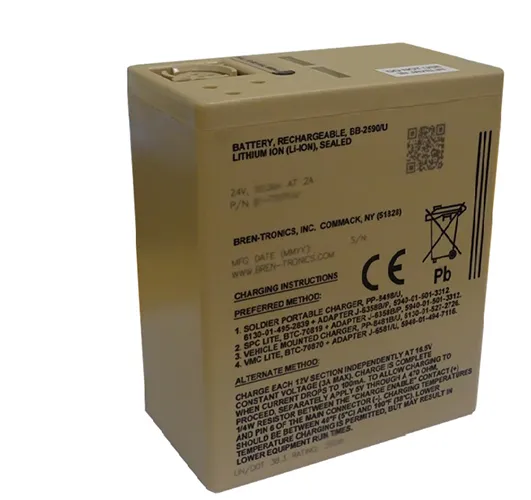

Rechargeable Lithium Ion Battery

Features of Rechargeable Li-ion Battery:

• Complies with SMBus v1.1 and SBData v1.1
• UN/DOT 38.3 Rating: 302Wh
• Comparable to: BB-2590/U, BT-70791A, BT-70791Cx, and BT-70791Jx
• Absolute state of charge indicator
• Designed, manufactured, and tested to MIL-PRF-32052/1 in the USA
• Protected by one or more U.S. Patents. See: www.bren-tronics.com/patents
• Compliant to European Council EMC Directive 2004/108/EC and Battery Directive 2006/66/EC

Typical applications of Rechargeable Li-ion Battery:

• Robots
• Surveillance / Sensors
• SINCGARS & ATCS (AN/PRC-104, 119) Radios
• FALCON (AN/PRC-138, 117) Radios

Technical Specifications:

• National Stock Number Pending Conforms to NSN: 6140-01-490-4316
• BT Part Number BT-70791BV
• Dimensions: Length: 4.4 in (112 mm) Width: 2.4 in (61 mm) Height: 5.0 in (127 mm)
• Weight: 3.1 lbs (1.4 kg)
• Nominal Voltage: 28.8V, Two (2) x 14.4V/Section
• Maximum Voltage: 33.6V, Two (2) x 16.8V/Section
• Capacity: 10.3Ah in 24V Mode; 20.6Ah in 12V Mode
• Discharge: 10A Max Continuous / Section
• Pulse Discharge: 18A (5 sec ON/25 sec OFF) / Section
• Operating Temperature: –32°C to +60°C (-25.6°F to +140°F)
• Recommended Storage Temperature: –40°C to +40°C (-40°F to +104°F)
• Connector: 6 Pin Floating Type per U.S. Army DWG # SC-C-179495
• State of Charge Indicator: 5 Segment LCDs with Constant Display
• Disposal: Check local regulations (Contains 0% Mercury or Cadmium)
