Pickering Interfaces Ltd.

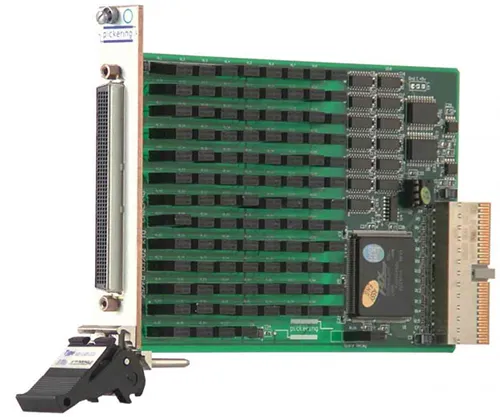

PXI High-Density General Purpose Switch Modules

• Up to 100 Relays per Module

• SPST, SPDT and DPST Configurations

• Ruthenium Reed Relay Solutions Suitable for Maximum Signal Performance

• Electro-mechanical Relay Solutions for Higher Power Applications

• 200-Pin Front Panel Connector

• Kernel, VISA and IVI Support for PXI Environments and Kernel and IVI Support for LXI Environments

• Selected modules are supported by our eBIRST Switching System Test Tools, these tools provide a quick and simple way of finding relay failures within LXI, PCI and PXI switch systems.

Our PXI high-density general purpose switches provide an ideal solution for applications requiring dense arrays of uncommitted relays.

All reed relay modules use high-quality sputtered ruthenium relays that exhibit excellent contact performance under low and medium level switching conditions. Do you have a general purpose application that requires high power handling? We also have electro-mechanical modules that are ideal for just these situations.

All of our PXI high density general purpose switches use a 200 way connector that is supported by a comprehensive range of cable and connector accessories ensuring they can be quickly integrated into your test system with a minimum of effort.
