PARAT Halvorsen AS

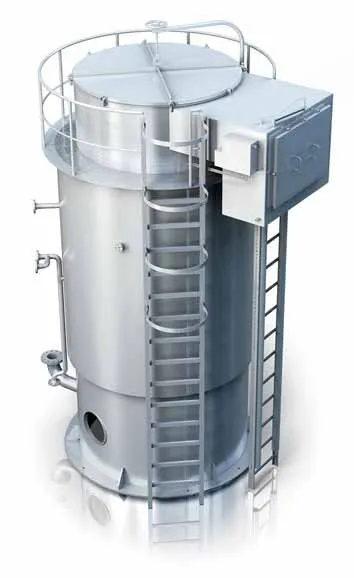

PARAT MEH

PARAT MEH

• Compact and rugged design for Marine use
• Approved by DNV, LRS, BV, ABS, RMRS etc.
• Capacity up to 60 MW
• EX approved version for FPSO is available

The PARAT High Voltage electrode boiler can be delivered with a capacity up to 60 MW. With our 40 years of experience in marine boilers we have made a rugged design that fulfills all class requirements. The new electrode system for marine use, is a result of many years of experience combined with an innovative design.The high voltage electrode boiler is extremely compact. The cost savings on ships are also significant, since no transformer or low voltage cables are needed.The electrical control panel includes a complete safety and control system. This system is based on Siemens SIMATIC S7 system with a touch panel for local operation. Communication with the ships main control system is  possible as well, from analog and digital signals to bus systems as PROFIBUS and MODBUS. The safety system is independent the PLC system.
