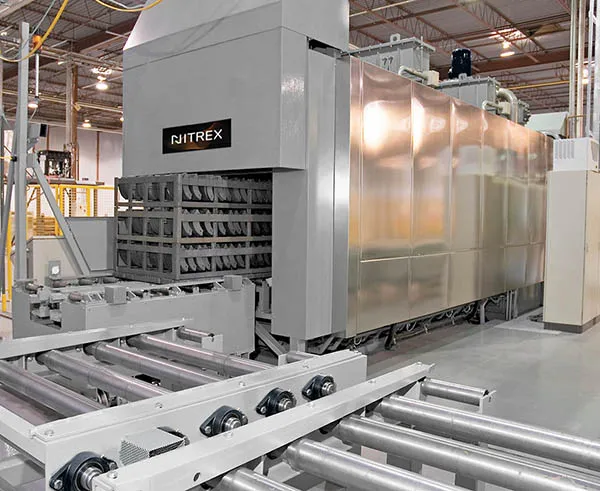

Turnkey NXL CONTINUOUS SERIES

Turnkey NXL CONTINUOUS SERIES

The NXL multi-chamber continuous gas nitriding/nitrocarburizing furnace is based on flexible and scalable process modules as a means of increasing the system’s capacity and adaptability to technological, application, and productivity demands. The NXL is offered in standard and custom sizes and configurations to suit unique needs with regard to parts dimensions, productivity and metallurgical requirements.

The flexible NXL system is easily adaptable to different levels of manufacturing automation from semi to full and lights-out operations.

Features & Benefits

• Inconel 600 (refractory steel) retort and racking for long service life and non-reactive interaction with nitriding atmosphere
• Light fiber insulation reduces heat losses and thus energy consumption
• Efficient internal recirculation ensures uniform process atmosphere
• Heating system provides exceptional temperature uniformity throughout the workload
• Highly economical solution for just-in-time high-volume production
• Modular design for flexibility in multi-stage processes, customized configurations to suit any given application
• Modular, flow-through design provides 30-40% energy savings compared to batch furnaces
• TurboCooling module shortens cooling times and improves furnace utilization rates
• Easy integration into production flow
• Preconfigured and factory-tested
• Pretested for metallurgical results
• Fully automated operation guarantees repeatable and consistent results
• True Nitriding/Nitrocarburizing Process Control – Compliant with AMS 2759/10 and AMS 2759/12 standards
• Superior case properties per customer specifications
• Various case configurations possible
• Repetition of results
• System for data archiving and reporting as well as remote diagnostics
• SCADA connectivity
• Clean, environmentally-friendly processes powered by Nitrex effluent neutralizers
