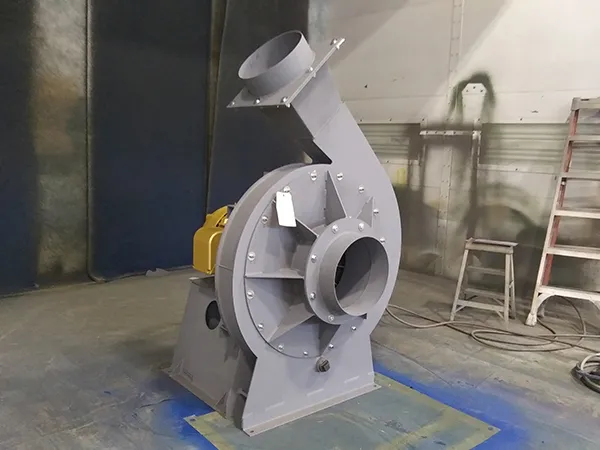

Radial Custom Fans

Fans with radial wheels are best suited for lower volume, high pressure applications. The flat radial blade design of the wheel makes it the best option for processes involving material conveying with airstreams containing coarse material or heavy dust and particulate matter. Typical uses include dust collection, pneumatic conveying, moisture blow-off, incineration and oven and dryer exhaust.

WHEEL DESIGN:	Radial - Open wheel Radial - Shrouded wheel
DESIGN FEATURES:	VOLUME - over 700,000 CFM (1,189,308 m³/hr) PRESSURES - to 150"WG (37,326 Pa) TEMPERATURES - standard up to 1,800°F (983°C) SIZES - ranging from 8"-150" (203mm-3810mm) ARRANGEMENTS- 1, 2, 3, 4, 7, 8, 9 and 10
AVAILABLE MATERIALS OF CONSTRUCTION:	Carbon Steel Stainless Steel Aluminum Special Alloys
FAN-TO-SIZE ONLINE:	Radial
ONLINE DRAWINGS:
APPLICATIONS :	Blow-off Dust control Incineration Oven and dryer exhaust Pneumatic conveying
