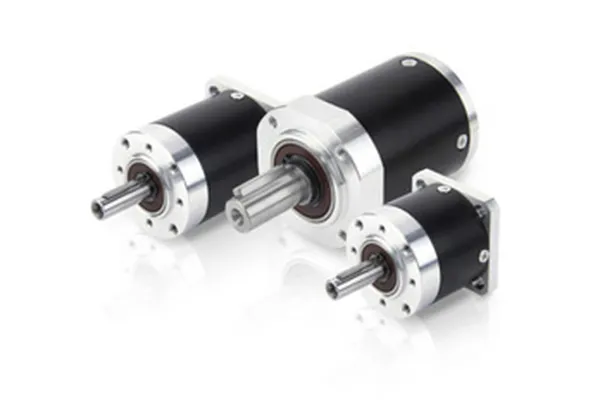

HIGH-TORQUE PLANETARY GEARBOXES

The planetary gearboxes of the GP series are offered in one- and two-stage versions as well as with mounting flanges for all compatible motor series from Nanotec. Through the simulation-based toothing design, they achieve a significantly higher torque than economy planetary gearboxes. Thanks to their modular concept and optimal dimensioning, they are quick and easy to adapt to individual customer requirements.

• Combinations with brushless DC motors and combinations with stepper motors possible
• Rated torque of 1.8 - 29.1 Nm
• Max. gear backlash of 0.95°
• High efficiency
• Several reductions
