Fan design features:

• One-piece injection moulded fan of engineered thermoplastic materials.

• Fan has 4 fixed-pitch, positively set fan blades.

• A unique broad paddle shaped profile and 3 standard pitch angles of 30º, 35º and 40º.

• One-piece aluminium-alloy boss, which is available in a range of bore/fixing configurations.

• Also available in a version accommodating a range of thermoplastic taper-lock bushings.

• Only available in a configuration where the fan blades rotate in a clockwise direction when facing the air stream.

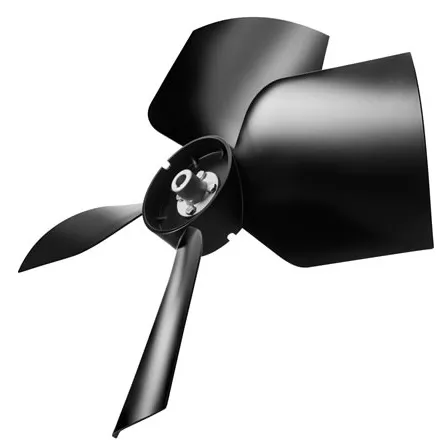

Multi-Wing’s M-Series axial fans have high-pressure capability at low speeds resulting in low noise levels in most compact heat exchangers. The one-piece moulded design gives it high value for money in comparison to similar products. The M Series axial fans are injection moulded in engineered thermoplastic materials and cover diameters from 300mm up to 508mm. The M Series has four fixed-pitch broad paddle fan blades and uses a one-piece aluminium boss.

The M series is engineered to meet the demands of smaller heat exchangers such as oil coolers, air-cooled condensers and dry coolers. With fan blades of glass reinforced polyamide, this axial fan can also be used in low temperature evaporator applications. The M series is only available in a configuration where the fan blades rotate in a clockwise direction when facing the air stream.
