Fan design features:

• One airfoil fan blade with variable pitch setting with 1° increments.

• 2 to 12-blade configurations for axial fans.

• 1 available hub size – 3, 4, 6 and 12 blades. All symmetrically arranged, each available in a range of bore/fixing configurations.

• Fan diameter range from 405 mm up to 792 mm.

• Fan blade for counter-clockwise rotation.

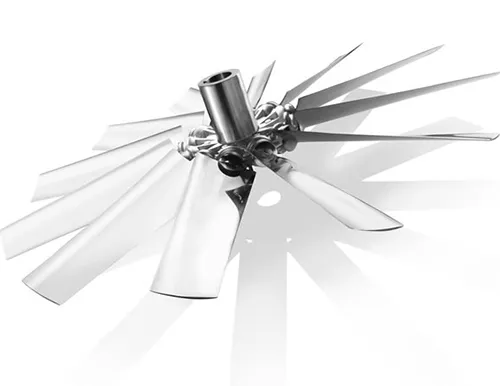

Multi-Wing’s 3C fan combines a rugged high efficiency airfoil fan blade with an industrial strength hub package to give you an axial fan that can withstand temperature extremes from -60°C to 400°C. Manufactured in aluminium with a reinforced hub and mounted with a stainless steel boss, the 3C is an industrial strength axial fan that can handle the most demanding air moving applications in harsh environments.

We have specifically designed it to handle the high demands of European Standard EN 12101-3 covering industrial ventilation units for smoke and heat control systems. These high strength fans can operate at 400°C for 120 minutes, while providing excellent airflow and efficiency rates.

The 3C fan can operate at twice the speed of standard axial fans. It is the perfect choice for a range of commercial refrigeration applications including air cooled condensers, blast freezers, chillers, evaporators, food processing and food storage.
