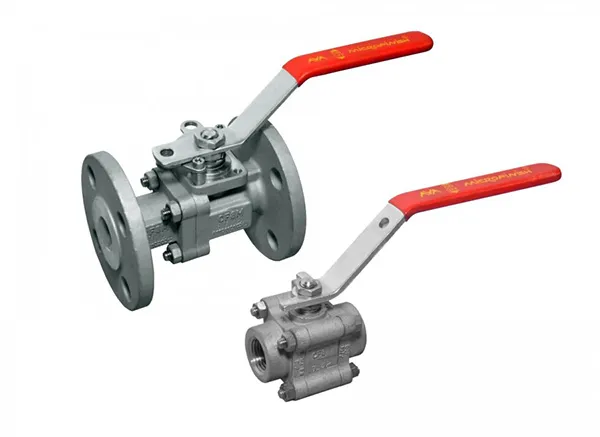

Floating Ball Valve
Microfinish floating ball valves are available in a flanged type one piece side entry design; a two piece mainly ASME flange type design, and three piece with a variety of end connections such as threaded, socket weld, butt-weld, and extended butt-weld ends for in-line welding.
All configurations are available in reduced bore and full bore designs, in sizes from 1/2 inch (DN15) and up to 10 inch (DN250), and pressure classes from ASME 150 to 2500 (size dependent).
Applicable standards
Design standard
ASME B16.34, ISO 17292, API 6D, API 608
Testing standard
API 598, EN 12266-1, ASME B16.34, API 6D, ISO 5208
Fugitive emission
TA-Luft, ISO 15848-1, API 641
Flange standard
ASME B16.5
Weld ends
ASME B16.25
Fire safe testing
API 607, API 6FA, ISO 10497
Sour gas service
NACE MR0175 / ISO 15156 and NACE MR0103 / ISO17945
Documentation
EN 10204 type2.2 (default) / 3.1/ 3.2
