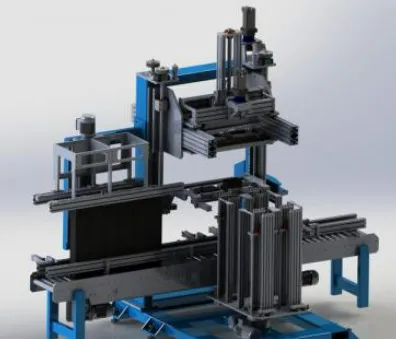

Battery lid seal machine

Project Description

Battery Lid Sealing:

• heat bond two lids onto two battery boxes every 40 seconds
• twin ball screw gearbox driven Z axis
• split heating platten for improved tempurature control
• oil damped stroke stops for the heater plate motion
• duel box width compatability
• 12 different lid sizes catered for
• PLC control of the heating and recepe selection
• self containted pneumatic design
• light guards to prevent operator access during running...
• operator loading of the carousel during normal operation with secondary light guards

 This machine is designed to take lids from an operator loaded magazine two at a time, and with a controlled heating cycle melt them onto the positioned boxes below.

Its designed to handle a range of boxes from 330mm to 750mm tall in differing opening sizes
