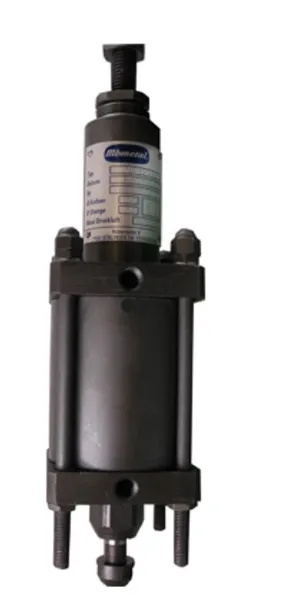

MV12VP Pneumatic Impact Unit 3-4 Ton
Ergonomic Efficiency, Marking Versatility
Designed for use in indexing tables, transfer systems or assembly machines, the MV12VP is a pneumatic impact marking unit featuring 1,500 pounds of force. Unlike mechanical models, the air cylinder helps to ensure minimum exertion by the operator, making high-volume jobs more ergonomically compliant.
The adjustable impact force remains constant and is not altered by length of stroke, but by adjustment of spring compression. MB Metal Technologies offers a variety of springs for lighter or heavier marking, depending on the substrate to be marked.
All MB Metal Technologies air impact models are double acting. They can be activated by a manual or remote valve. Two-hand and foot controls are available. See “Accessories.”
The MV12VP adapts to a wide variety of impact jobs, using available tool inserts and marking heads. Units operate in any position and mount at either end using four tie rods with extended threads. The clean, simple design with few operating parts, reduces maintenance.
