Lenhardt & Wagner GmbH

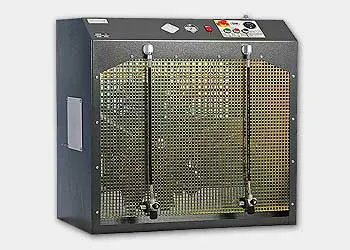

LW SC-300 E

LW SC-300 E

L&W offers quality at an unbeatable price-performance ratio with the Super Charger Series.

Our SC models are ideal for diving, sport shooters and fire services.
The multitude of possible options, the Super Chargers offers an all-round carefree package.
All models focus on high reliability, easy to operate and customized equipment.

Specifications

•   Electro motor
•   Powder coated steel housing (RAL 7016)
•   Automatic condensate drain with pressure free start/stop
•   Automatic stop at final pressure
•   Hour counter
•   Operating panel with start/stop and condensate test button, as well emergency stop switch
•   2 x Filling hose c/w filling valve
•   Motor protection switch
•   Pressure maintaining and non return valve
•   All pistons c/w steel piston rings
•   Low pressure oil pump and filter
•   Oil- / Water separators in stainless steel
•   Safety valves after each stage
•   3 x concentric suction/pressure valves
•   Filling pressure to your choice (200 or 300 bar)
•   Connections to your choice
  (DIN 200 bar or 300 bar, CGA 200 bar or 300 bar and INT)
•   Breathing air purification an accordance to EN 12021

Options

•   Auto start system
•   200 and 300 bar parallel filling pressures
•   Phase monitoring c/w shut down at wrong direction of rotation
•   Ambient temperature monitoring
•   Oil pressure gauge
•   Intermediate pressure gauges
•   Oil pressure monitoring c/w auto shut down
•   Cylinder head temperature monitoring with auto shut down
•   Indicator light - service interval
•   Oil temperature display with auto shut down
•   Filter housing for 1.7 l filter cartridges
•   Puracon filter monitoring
•   Remote Tab Control - RTC
•   Up to 2 additional filling hoses available
•   Additional high pressure outlet
•   Power cable and plug
•   Special voltages / frequencies on request
