Encoders Incremental 2420

Ideal for small devices Robust bearing structure Adaptable

Dimension Ø 24 mm 1.024 ppr incremental Max 6 mm hollow shaft, blind hole

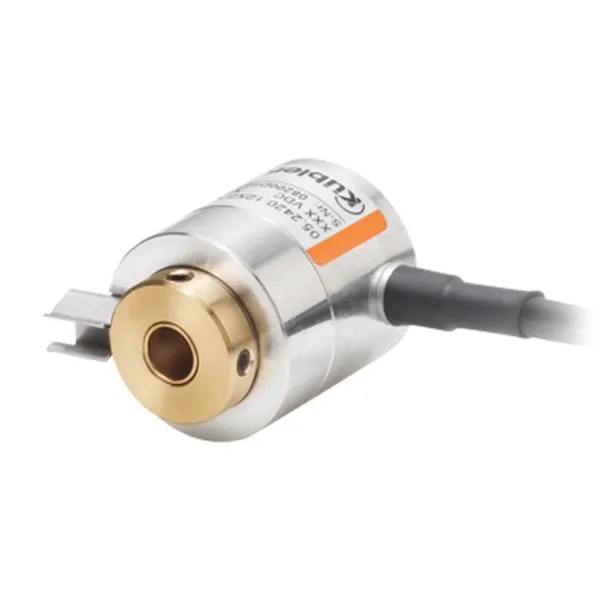

Ideal for the tightest installation spaces: Optical miniature encoders.

The 2400 / 2420 incremental miniature encoders with their optical sensor technology provide a resolution of up to 1024 pulses per revolution.
With a diameter of only 24 mm, these encoders are particularly suitable for use in confined spaces.

Technical data

MECHANICAL
Dimension	Ø 24 mm
Shaft type	4 mm hollow shaft, blind hole 6 mm hollow shaft, blind hole
Flange type	Ø 24.00 mm
Working temperature	-20 °C ... +85 °C
Protection level	IP50 IP64 IP65
Connection types	Axial cable Radial cable
Max. rotational speed	12.000 min-1
Weight	60 g

ELECTRICAL
Scanning	optical
Resolution max.	1.024 ppr incremental
Power supply	5...24 V DC 8...30 V DC
Interfaces	Gegentakt

Options
on request	Further impulse counters/resolutions

Benefits

Reliable

•             Robust bearing structure
•             Multiple clamping gives the cable outlet a high strain relief
•             Short-circuit resistant outputs

Versatile

•             Ideally suited for use in small devices
