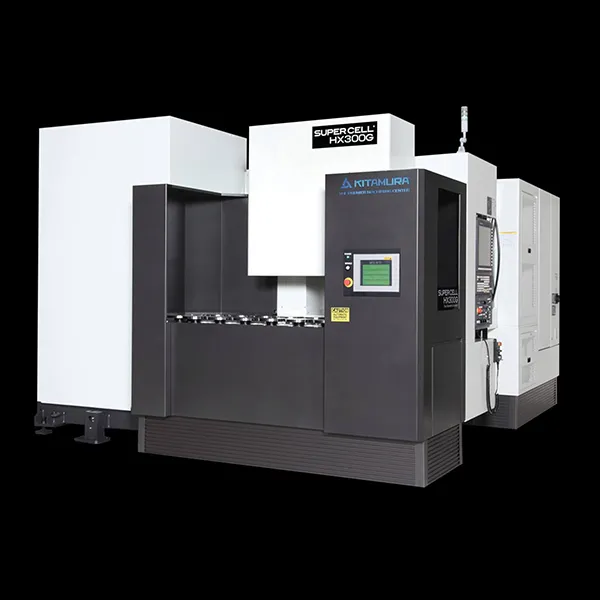

Supercell 300G 5 Axis Horizontal Machining Center
Kitamura 5-Axis Machining Centers
Vertical or Horizontal, Kitamura has the 5-Axis machining solution to give you the competitive edge needed to machine all of your complex, multi-sided parts in one set-up. Kitamura’s Trunnion table design offers the users increased accuracy and rigidity, simple set-up and ease of programming for the operator and allows for maximum stiffness and flexibility with the ability to position the work piece closer to the spindle. 4+1 or full simultaneous control, our 5-axis line up has you covered.
Supercell-300G
5-Axis Horizontal Machining Center
Specifications
|
Table Size:
|
7.9” (200mm) Round
|
|
Travel (X, Y, Z):
|
18.1” x 20.1” x 18.1”
(460 x 510 x 460mm)
|
|
Travel (A, B):
|
-120 to +30 deg. /0~360 deg.
|
|
Spindle Taper:
|
NST No. 40
|
|
Spindle Speed:
|
200~20,000rpm
|
|
Tool Storage Capacity:
|
174 Pcs. (230,258,314 Opt.) Matrix Style
|
|
Tool Change Time
(T-T/C-C):
|
1.3 sec. /2.5 sec.
|
|
Rapid Feed
(X, Y, and Z):
|
2,362ipm (60m/min)
|
|
Rapid Feed (A, B):
|
18,000 deg./min (50rpm)
|
|
Power Requirement:
|
55KVA
|
Features
• Horizontal configuration allows flexibility for single set-up, unmanned machining
• Ultra high positioning Accuracy: ±0.000079”/full stroke, Repeatability: ±0.000039”
• Ideal for both unmanned one-off and high quantity production
• Standard 20-station automatic pallet changer with up to 80 pallets available as an option
• Highest grade Meehanite cast iron construction with heavy duty roller linear guide way system
• High speed, built-in, dual contact 20,000rpm spindle
• Work handling system reduces pallet load & unload time, allowing for just-in-time operation
