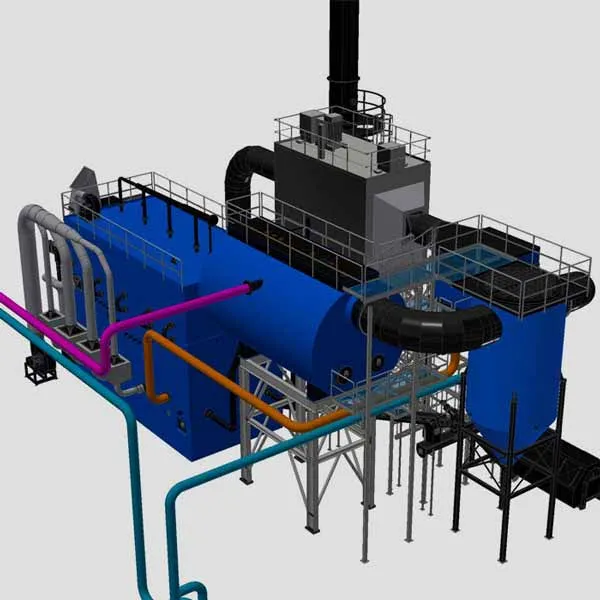

JUE-TDC-F boilers

JUE-TDC-F boilers

Capacity up to 30 MW. Designed for versatility as the combustion system can be adapted for all types of biomass fuels. The boiler consists of a separate grate/radiation section, horizontal convection part and vertical flue gas economizer. The boiler is available in both high pressure hot water and saturated steam versions.

The JUE-TDC-F boilers have been installed several in large scale industrial facilities around the world. The counter-current design of the grate and combustion chamber is ideal for wet wood chips with up to 55% moisture based on the total weight. As standard the boilers are equipped with ash riddling system, compressed air cleaning for boiler tubes and ceramic tiles. To allow a wider range of fuel moisture, the boilers can be equipped with combustion air preheating increase the allowable fuel moisture and flue gas recirculation to cool down the combustion when the boilers are operating in the lower end of the fuel moisture spectrum.
