The Instron Automated Testing Systems for Metals are configured to perform unattended tensile testing of metallic specimens of varying lengths and thicknesses. These systems have been designed to meet ASTM E8, EN 10002-1, ISO 6892 and other metals tensile standards, including JIS and DIN and can be easily configured to meet other requirements. Barcodes are utilized to pass specimen geometry, handling and testing information to the TestMaster2 automation control software. Bi-axial, Advanced Video Extensometry allows for r and n-value testing.

To satisfy the majority of our customer's testing requirements, Instron has developed 100 kN and 250 kN capacity standard automation system configurations, other capacities can be quoted upon request.

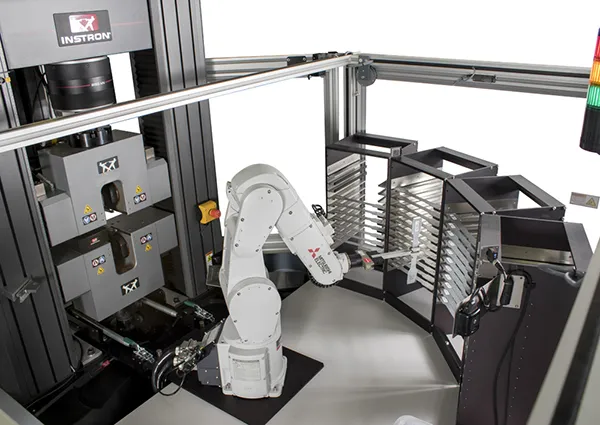

100 kN Automation System

The 100 kN Automation System is configured to perform unattended tensile testing of metallic specimens of varying lengths,

The system consists of a standard Instron Universal Test frame, Advanced Video Extensometer, hydraulic wedge action grips and hydraulic power supply.

The robotic system is comprised of the following elements:

• Mitsubishi industrial- grade articulated arm

• Specimen storage racks designed to fit customer’s specifications*

• Barcode reader

• Dual axis specimen measurement device

• Automatic ink transfer marking station to apply video targets

• Bluehill materials testing software

• Premium PC

• Testmaster2 automation control software
