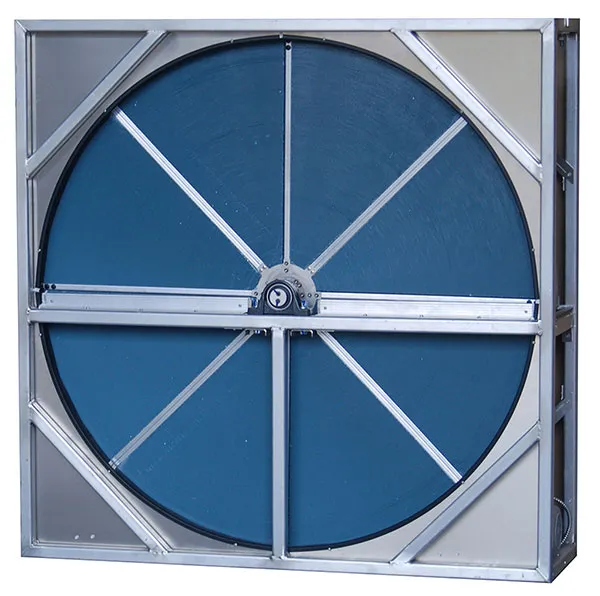

I4 energy recovery wheel
I4 energy recovery wheel
The I4 energy recovery wheel have no equal when it comes to outstanding reliability and affordable prices.
FEATURES AND BENEFITS
- 100% Aluminum frame, 100% redesigned construction
- Standard 5 years full parts and labor warranty
- Fast payback due to great sensible and latent effectiveness
- With 3 angstrom molecular sieve (MS3A)
- Equipped with the best seal on the market (AirloopTM) for the lowest AHU fan operating costs and cross leakage levels
- AHRI certified performances; Bears the AHRI Standard 1060-2011 certified seal
- Segmented design and serviceable frame for ease of maintenance
- Bactericide desiccant; will not promote the growth of mold or bacteria
- Meets NFPA 90A and 90B, tested under UL Standard 723
Featuring a solid, industrial construction with aluminum media and backed by our unique 5 years full parts and labor warranty, the I4 energy recovery wheel have no equal when it comes to outstanding reliability and affordable prices.
A leader when it comes to its AHRI1060 certified energy recovery performances, the I4 energy recovery wheel is offered with the choice of 3 angstrom molecular sieve desiccant or no desiccant for sensible only applications.
The I4 energy recovery wheel is also the only wheel on the market featuring the revolutionary AirloopTM labyrinth seal technology for the lowest air handling unit fan operating costs on the market. With a proven air loss reduction of over 20% compared to other certified manufacturers, the I4 energy recovery wheel will pay for itself with just the resulting AHU operating cost reductions and turn good savings into great savings.
OPTIONS
- Epoxy coating on frame
- Epoxy coating on media
- I4R field installation models
Datasheets and other product documentation in the Library section.
OPERATING PRINCIPLE
The I4 energy recovery wheel offers great energy recovery both in summer and winter modes. In summer times, the wheel will greatly reduce the sensible (heat) and latent (moisture) energies leading to significant cooling and dehumidification cost reductions. Following the same principle, during winter months, the wheel will recover both the heat and moisture from the return air stream and add it to the cold outdoor air for great heating and humidification savings.
