Index Corp.

• 22 (24) mm bar diameter
• 10,000 rpm max. speed
• 15 kW max. power
• 18 Nm max. torque

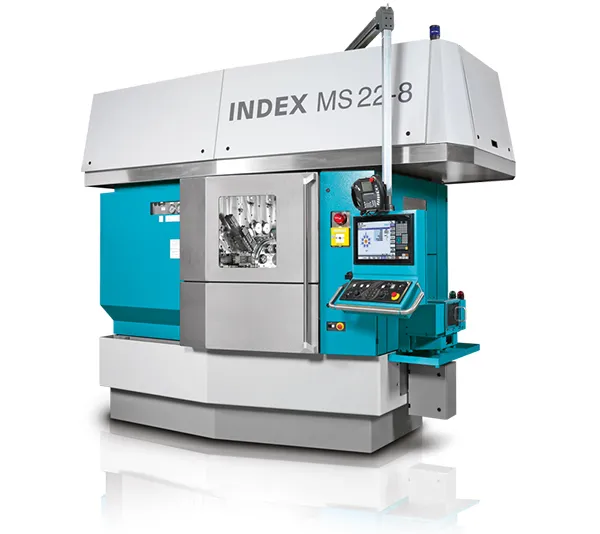

Productive multi-spindle machine with 8 spindles

8 main spindles, up to 2 swiveling synchronous spindles and up to 16 tool carriers.

Machine highlights

Your benefits

• Highly-dynamic slides with sliding guide (X-axis)
• Non-wearing Z-axis due to quills with hydrostatic support
• Chuck part machining with loading and unloading by robots
• Up to 16 tool holders with 1 or 2 axes and optional Y-axis can be used variably
• Versatility is the strong point of the MS22-8. Whether complex parts or different processes are involved – anything is possible
• More options for rear end machining with hydraulically locked and extremely fast swiveling synchronous spindle
• Already included: the operating system iXpanel i4.0 ready with 18.5” touch screen and Siemens S840D sl

The expansion options

Double four-spindle machine – a profitable upgrade option

• Additional part production time reduction due to simultaneous manufacturing of 2 workpieces
• 14 tool carriers with 1 or 2 axes (optionally also Y-axis)
• 2 swiveling synchronous spindles
• 2 rear slides (option) with 3 tools each, of which up to 2 are live

Your advantage: Two identical or two different workpieces can be machined in parallel.

Result: fast cycle times.

Eight-spindle machining with simultaneous rear end machining

• Front end machining with up to 15 X/Z tool carriers (optional Y-axis)
• Cutoff end machining at the same time
• 1 swiveling synchronous spindle
• 1 rear slide
• Versatile machining options
• Machining of highly complex workpieces possible

Your advantage: Reduced cycle time with time-determining rear end machining
