Acme Screw

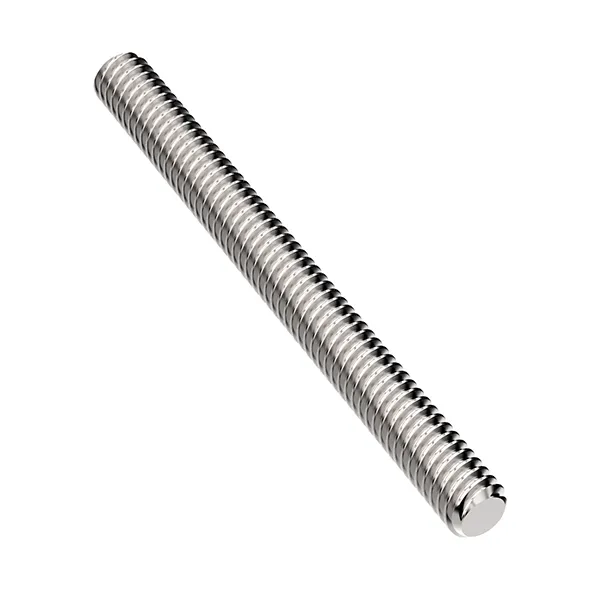

Acme Screw - 1⁄4"- 3 RH SS

Description

Lead Screw Only, 1⁄4"- 3 SS, Stub Acme, RH, 300 Series Stainless Steel, Number of Starts 4

Dimensions

Thread Direction	RH
Material	300 Series Stainless Steel
Metric or Imperial	Imperial
Diameter - Inch	0.250
Lead (in)	0.333
Pitch (in)	0.083
Starts	4
Threads Per Inch	12
Lash (Max axial)	0.005
"A" Diameter - Inches	0.192
"D" Diameter - Inches	0.250
Wt. (lb/ft)	0.13
Thread Code	25
Lead Code
Form	Stub Acme
Max Overall Length
Max Usable LH/RH Thread
Incomplete Overlapping thread
