Standard Heat Exchangers

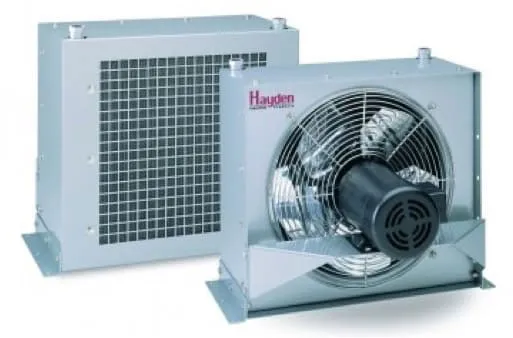

Standard Heat Exchangers

We offer a variety of Standard Sized Heat Exchangers (copper tube with aluminum fin air cooled), all which incorporate our FIN-COOL® technology and are available for immediate shipment. You can size our standard units to your application using our FAST FITTM on-line sizing tool. `Please contact us for more information on our Standard Heat Exchangers and customization options for each.

KEY FEATURES

• Copper tubing (¾” diameter) and continuous rippled aluminum fins maximize thermal efficiency at a low cost
• Continuous rippled fins provide structural rigidity, increased surface area, and provide better air flow
• Each tube is fitted with our SwirlFlow Turbulator, increasing heat transfer by up to 550% over bare tube heat exchangers
• SwirlFlow Turbulator produces a high velocity, mixed flow that enhances self-cleaning for a maintenance-free operation
• Maximum operating pressure of 300 PSI
• Maximum operating temperature of 350°

KEY OPTIONS

• Compact design for easy placement and installation with standard base mounting brackets
• Optional full enclosures that are high quality, durable construction
• Motor options:
• 230-460V - 3 Phase - AC
• 110V - Single Phase - AC
• 12V/24V - DC
• Hydraulic Motors
• Standard, integrated core guard provides longer fin life and high-efficiency heat transfer
• Options for SAE or FPT connections
• Dedicated single-pass and multi-pass units with female ports minimize plumbing costs and hardware
• Integrated pressure relief valve for cold start-up and high-flow bypass protection.
