Hawker Electronics Ltd

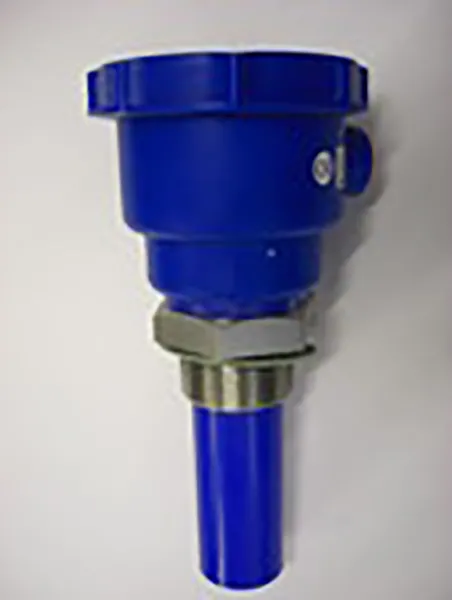

Magicap LS1

Stand alone probe with built in relay output. Temperature range from -20 deg C to +85 deg C.

The LS1 is sensitive at the tip only which makes it suitable in applications where it can be contaminated such as glues, bitumen and clay or in interface applications such as aerated cement powder, oil/ water interface detection or aerated wood chip

The sensing tube is manufactured in polypropylene or is also available in Ryton PPS which is practically chemically inert. Standard insertion length is approx 100mm with fixed or adjustable lengths up to 3 metres. Supply voltage is a nominal 24 v DC or 12 v AC.

12v DC units are available to special order (LS1/12)
