FROLYT Capacitors

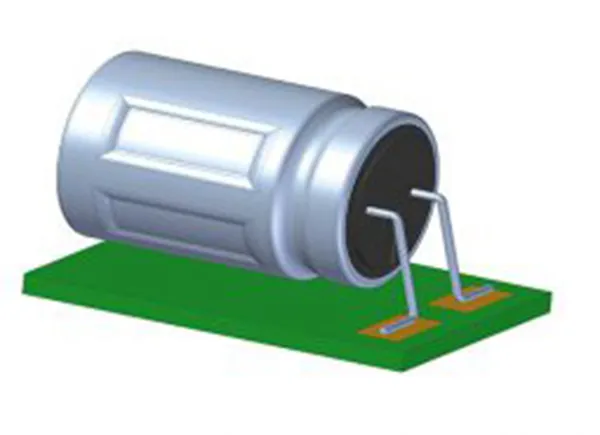

Embossed radial capacitors

Embossed radial capacitors

• electrolytic-aluminum-capacitor for surface montage with lead-free Reflow-Soldering for high requirements
• thermo-fixation while the soldering for high vibration exposures (30 G, 3 planes, rapid temperature change)
• high C x V - product for rated voltages between 6,3 V to 450 V
• temperature range -55 °C to 150 °C
• delivery in blister tapes on reel
• on demand with "coat"-isolation Ø8,7 mm to 18,0 mm
• parameter adjustment depending on the application

Sizes

• Ø8,7 mm x 12,7 mm
• Ø10,0 mm x 12,7 mm | Ø10,0 mm x 16,5 mm | Ø10,0 mm x 21,0 mm
• Ø12,5 mm x 21,0 mm | Ø12,5 mm x 25,0 mm | Ø12,5 mm x 30,0 mm
• Ø16,5 mm x 22,0 mm | Ø16,5 mm x 26,0 mm | Ø16,5 mm x 30,0 mm | Ø16,5 mm x 36,5 mm
• Ø18,0 mm x 21,0 mm | Ø18,0 mm x 26,0 mm | Ø18,0 mm x 30,0 mm | Ø18,0 mm x 36,5 mm
