Forrec srl

GRANULATOR FMS

The granulator FMS Forrec has been designed for the fine grinding of components coming from the plastic moulding, injection and blowing, extrusion (pipes, profiles, plastic sheets) film loose and in reels, blocks. These special grinding machines are used even in the treatment of refrigerators, electric wires and tyres.

Technologies:

• Soundproof loading hopper with protective measures in order to avoid the expulsion of material externally, suitable for loading using a conveyor belt

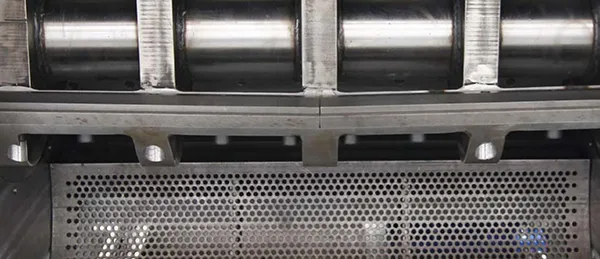

• Cutting chamber in top quality large steel sheeting assembled with screws and pins in order to render worn parts easily replaceable
• Double row spherical roller bearings housed in supports connected for the entire circumference to the grinding chamber with a relief and equipped with grease nipples
• Configuration of the scissor cut obtained with the inclination of the rotating blades in respect to the counter blades
• Tempered chrome k110 blades and counter blades (58/59 HRC), rectified and micro metrically adjustable
• Blades and counter blades adjustable on the bench with a template in order to always maintain optimal cutting conditions and distance between the blades and between the rotor blades and the grille, as well as a reduction in replacement times
• Reversible sorting grille with a large exhaust area mounted on a cradle grille holder which renders cleaning and replacement eas
• Solid flywheel fastened to the shaft rotor with expanding shrink disks which guarantee a reliable fastening over time
