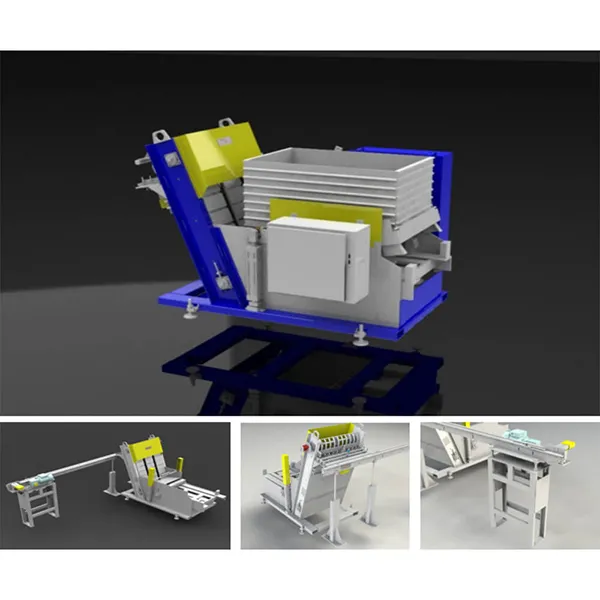

Auto Loaded Hopper Model 2212 - 2236

Auto Loaded Bar Feeder Models

Models 2212 – 2236 Auto Load Bar Feeders/Hoppers are designed to feed cut to length bars, tubes and machined parts 12″ to 20″ long (Model 2220) or up to 30″ long (Model 2230) with diameter ranges within a 2 to 1 ratio. Parts are hand stacked, bundle loaded or with modifications to the hopper loaded from a conveyor from a previous operation. This type of feeder is very suitable for non-mar applications when parts are finished or in a pre-heat treated state. The parts are elevated on singular elevator pads then discharged rolling into a magazine, then escaped rolling either to a cross conveyor, a pusher device, a walking beam, or customer tracking. Noise levels are very low due to zero recirculation of parts. These feeders have fed parts such as steering racks, strut piston rods, copy machine rolls, axle shafts, and many other shaft-type parts.

Feedall Model Options:

• Easy access hopper side cut out for part loading (optional hinged door)
• Vertical elevator with two strands of roller conveyor chain. Bolt-on cleat pads machined for each application part range
• Boston D.C. variable speed elevator drive
• Adjustable rear magazine and pneumatic escapement device
• Rear-mounted Model 1650 1″ wide by 72″ long conveyor
• Boston D.C. variable speed conveyor drive
• Telescoping ramp from magazine to conveyor (For centerless grinder)
• Ball bushing conveyor mountings (For centerless grinder)
