Dynapumps

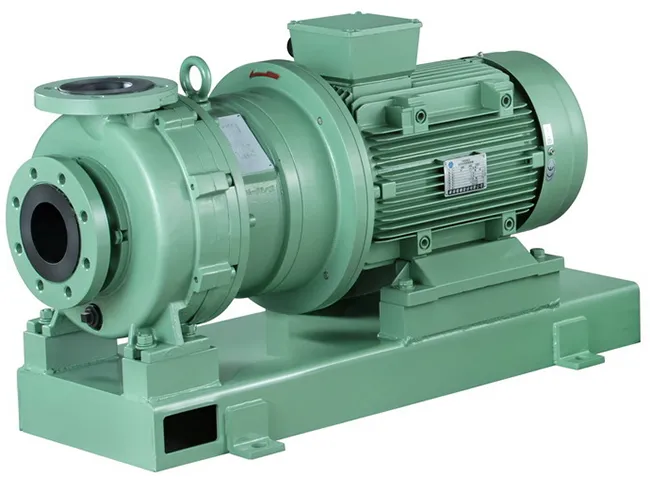

Magnetic Drive Seal-less Pump AMA-Series

AMA-Series Magnetic Drive Seal-less Pumps are designed for unloading and handling large quantities of chemicals, these pumps have a metallic armor lined with fluoroplastics suitable for handling hazardous chemicals.

Features:

• Designed according to ISO 15783 and 2858. Satisfy ANSI B73.5 specifications.

• Carbon fiber reinforced ETFE lining with ductile cast iron (FCD450) armor provides both a rugged structure and nearly universal resistance to corrosive chemicals and environments.

• A rigid duo-layer rear casing construction with the inner layer consisting of molded carbon fiber and vinyl ester composite provides pressure and shock resistance up to 35 kg/cm2 for operational safety and durability.

Specifications

Specification 50 Hz 60 Hz

Max. Capacity (l/min) 1,600 1,800

Max. Head (m) 54 76

Power Range (kW) 5.5 - 18.5

Temperature Range (°C) 0 - 95
