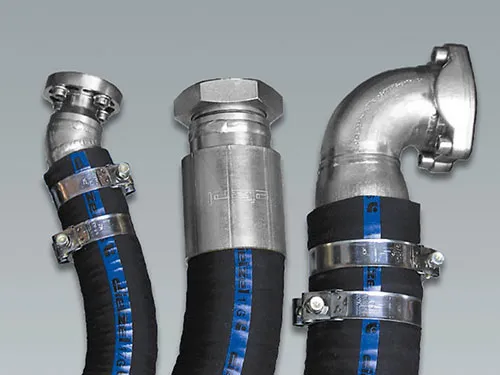

Hydraulic hose lines
Hydraulic hose lines with textile-braiding strengthening
At low operating pressures up to 145 bar and small bending radii from 40 mm onwards, the use of hydraulic pipes with textile braiding strengthening is a cost-effective alternative. We crimp the hoses in-house with fittings of the dH1000 series and the relevant holders. This ensures process-safe use as a tested system.
Variants upon request:
- Steel wire braid armoured
High pressure hose lines with wire braid strengthening
In the high-pressure range, we offer an extensive selection of international standard hoses (SN, SC). In addition, we can offer a broad spectrum of high-quality hose types that exceed the requirements in the standard.
Variants upon request:
- Highly abrasion-resistant
- High temperature-resistant
- Steel wire braid armoured
Very high pressure hosepipes with 4 or more wire spiral inlays
Hosepipes of type 4SH and R15 are generally integrated with tear-off resistant fittings of the dH7000 series. For increased safety requirements, for example, for use in injection moulding machines according to DIN EN 201, we use, exclusively, one-part, tear-out secured fittings.
- Highly abrasion-resistant
- Highly abrasion-resistant
- Steel wire braid armoured
