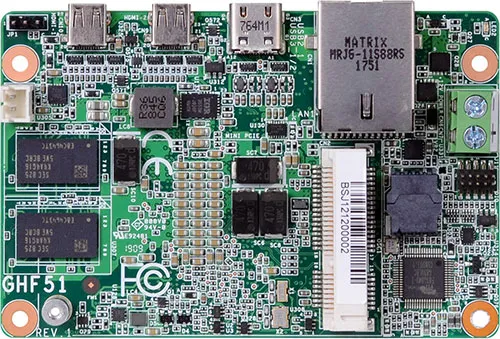

1.8” SBC with AMDRyzen™ Embedded R1000 Series

Features of AMD Embedded R1000 Series Industrial Motherboards

• World first 1.8” SBC board with AMDRyzen™
• Memory: 1 DDR4 memory down up to 4GB/8GB
• 12V DC input for the industrial devices
• Dual display: 2 micro HDMI resolution supports up to 4096x2160 @ 24Hz
• Expansion: 1 Mini PCIe, 1 SMBus
• Rich I/O: 1 Intel GbE, 1 USB 3.1 Gen 2 Type C
• Wide operating temperature:-20 to 70°C
• 10-Year CPU Life Cycle Support

Specification:

System

Processor

• AMD® Ryzen™ Embedded R1606G, Dual Core, 1MB Cache, 3 CU, 2.6GHz (3.5GHz), 12W
• AMD® Ryzen™ Embedded R1505G, Dual Core, 1MB Cache, 3 CU, 2.4GHz (3.3GHz), 12W
• AMD® Ryzen™ Embedded R1305G, Dual Core, 3 CU, 1.5GHz (2.8GHz), 8-10W (Coming soon)
• AMD® Ryzen™ Embedded R1102G, Dual Core, 3 CU, 1.2GHz (2.6GHz), 6W (Coming soon)

Memory

DDR4 Memory Down up to 4GB/8GB
Single Channel DDR4 2400MHz

BIOS

Insyde SPI 64Mbit

Graphics

Controller

AMD Vega GPU with up to 3 computing units.

Feature

H.265 decode/encode support, VP9 decode.

Display

2 x Micro HDMI
HDMI 1.4: resolution up to 4096x2160 @ 24Hz

Storage

eMMC

1 x 16GB/32GB/64GB eMMC

Expansion

Interface

1 x Full-size Mini PCIe (PCIe Gen2/USB 2.0, opt: USB 3.1 Gen2/USB 2.0)

Ethernet

Controller

1 x Intel® I211AT PCIe (10/100/1000Mbps) or
1 x Intel® I210IT PCIe (10/100/1000Mbps)

Rear I/O

Ethernet

1 x GbE (RJ-45)

USB

1 x Type C USB 3.1 Gen 2

Display

2 x Micro HDMI (HDMI 1.4)

Internal I/O

DIO

1 x 8-bit DIO

SMBus

1 x SMBus

Watchdog Timer

Output & Interval

Software Reset, Programmable via Software from 1 to 655,535 Seconds

Security

TPM

fTPM 2.0

Power

Type

Single 12V +/-5% DC

Connector

2-pin Terminal Block

Consumption

Typical: R1505G: 12V @ 0.37A (4.44W)
Max: R1505G: 12V @ 1.74A (20.88W)

RTC Battery

CR2032 Coin Cell

OS Support

OS Support (UEFI Only)

Windows 10 IoT Enterprise 64-bit
Linux (Kernel 5.3)

Environment

Temperature

Operating: 0 to 60°C/ -20 to 70°C(opt.)
Storage: -40 to 85°C

Humidity

Operating: 5 to 90% RH
Storage: 5 to 90% RH

MTBF

TBD

Mechanism

Dimensions

1.8" SBC Form Factor
84mm (3.31") x 55mm (2.17")

Height

PCB: 1.60mm
Top Side: 13.8mm, Bottom Side: 2.00mm

Packing List

1 GHF51 board
1 Heat sink (Height: 30mm) A71-008127-010G
1 2-pole terminal to DC Jack cable A81-004013-000G
1 DIO cable A81-009203-018G
1 Screw of Mini PCIe card A32-E12016-050G
Note: Note: The items are subject to change in the developing stage.

Country of Origin

Taiwan
